Jiangsu Elesun Cable Co., Ltd. is one of the leading manufacturers and suppliers of lmr600 flexible low loss coaxial cable in China, also supports customized service. Should the bulk lmr600 flexible low loss coaxial cable made in China caters to your requirement, welcome to get the datasheet from our factory.
Product Description

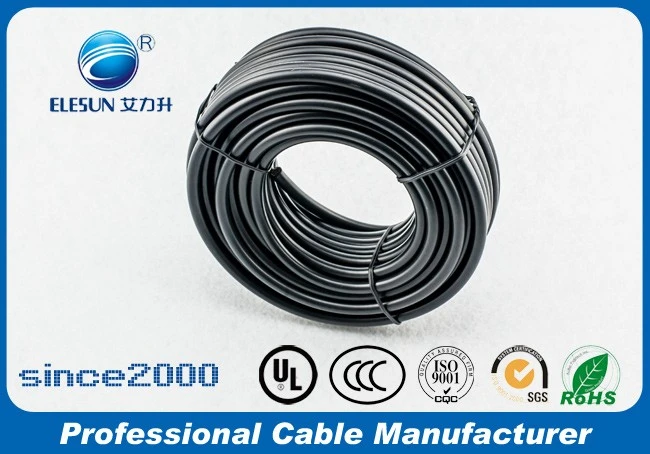

Our factory produces coaxial cables, connectors, cable assemblies, connecting lines and wires. LMR600 Flexible low loss coaxial cable is a flexible 50Ω low-loss coaxial cable, equivalent to LSR600 and similar to 12D-FB foam PE cable. It is often used for jumper assemblies in wireless systems, with N, SMA and other connector options.
Working Principle
LMR600 Flexible low loss coaxial cable carries RF signal through the inner conductor, while Foam PE insulation lowers dielectric loss. Aluminum tape and tinned copper braiding provide shielding, and the jacket protects the cable. The 50Ω impedance helps keep stable performance from 0 to 2500MHz.
Product Structure

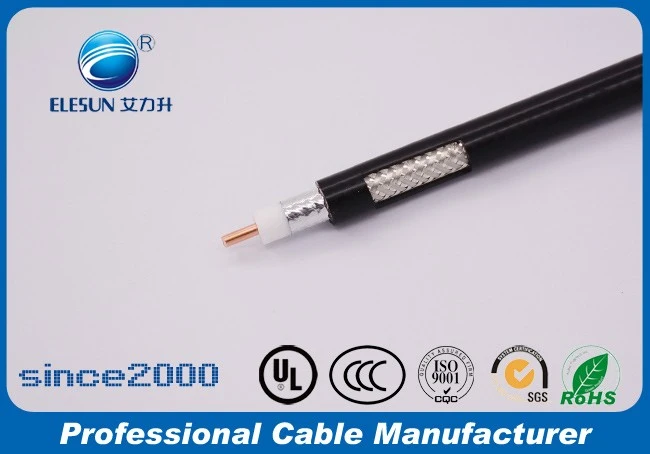

LMR600 Flexible low loss coaxial cable: inner conductor CCA/BC, 1/4.47mm; insulation FPE, 11.5mm; 1st shield aluminum tape; 2nd shield tinned copper braid, 168*0.18mm; jacket PVC, PE, FRPE or FRPVC, 15.0mm; color black or white.
Technical Data
Key data of LMR600 Flexible low loss coaxial cable:
|
LSR600(LMR600) low loss coaxial cable specifications |
|
|
Material of Inner Conductor |
CCA, BC |
|
Structure of Inner Conductor |
1/4.47mm |
|
Material of Insulation |
FPE(Foam PE) |
|
Diameter of Insulation |
11.5mm |
|
1st Shielding |
Aluminum Tape |
|
Material of Braiding(2nd Shielding) |
TC (Tinned Copper), |
|
Structure of Braiding(2nd Shielding) |
168*0.18mm |
|
Material of Jacket |
PVC,PE, FRPE, FRPVC |
|
Diameter of Jacket |
15.0mm |
|
Working temp |
-40℃/80℃ |
|
Impedance |
50Ω±2 |
|
Voltage |
4000V |
|
SWR(0-2500MHz) |
≤1.2 |
Applications
LMR600 Flexible low loss coaxial cable is used for wireless communication jumper assemblies, base station and antenna feeders, indoor/outdoor RF links. It can replace 12D-FB foam PE coaxial cable in flexible low-loss runs, and can be made into N to SMA assemblies.
Features and Assembly
LMR600 Flexible low loss coaxial cable has a flexible outer conductor and a better bending radius than similar-size cables. Its loss is low, close to semi-rigid cable. Jackets can be selected by environment. Connectors, cable assemblies and connecting lines can be supplied to match.
Contact
For LMR600 Flexible low loss coaxial cable or finished assemblies, send your specs, quantity and working environment. Jiangsu Elesun Cable Co., Ltd. will reply with a quote.
