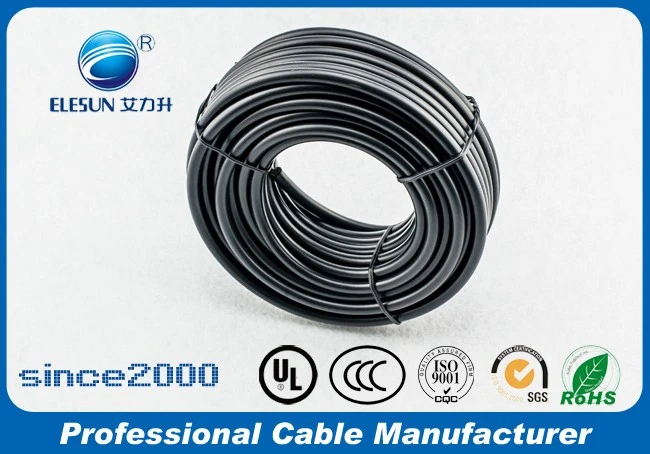

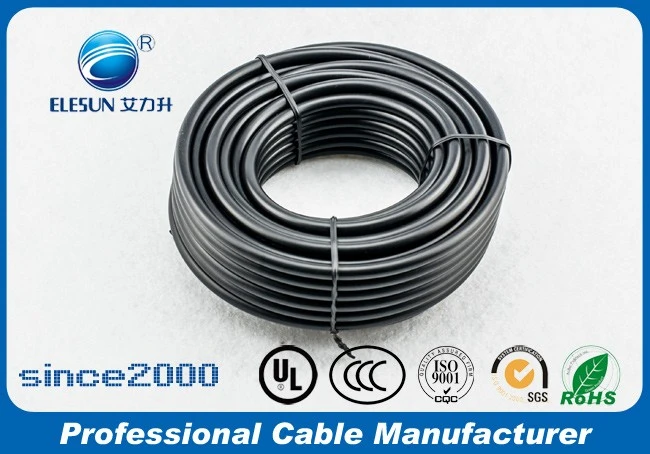

RG10 /U coaxial cable is a 50Ω high-voltage coaxial cable, referenced to Mil-c-17. It has a black PVC jacket and is suitable for direct burial. Inner conductor is 7/0.75mm bare copper. Double silver copper braid shielding. Voltage rating 4000V. For high-frequency and high-voltage signal transmission. Connectors and cable assemblies available.
Working Principle
RG10 /U coaxial cable transmits high-frequency signals through a concentric structure. Inner conductor carries signal. Insulation keeps spacing. Outer shield reduces interference and forms return path. 50Ω±2 impedance helps matching and lowers reflection. Solid PE gives stable dielectric performance. Double braid improves shielding. 4000V suits high-voltage use.
Product Structure

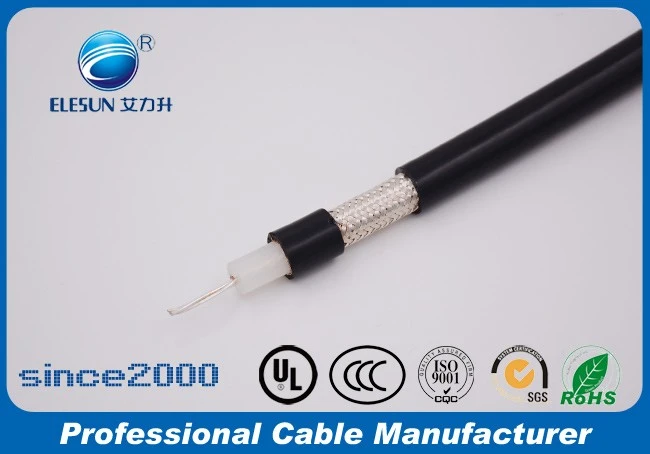

RG10 /U coaxial cable is built as: inner conductor → solid PE insulation → double silver copper braid → PVC jacket. Inner conductor: 7/0.75mm bare copper. Insulation diameter: 7.24mm. Shield: 128+144×0.15mm. Jacket diameter: 11.80mm, black. Aluminum braid layer can be added for direct burial or extra protection.
Technical Data
Main data of RG10 /U coaxial cable:
|
RG10/U coaxial cable specifications |
|
|
Material of Inner Conductor |
BC(Bare Copper) |
|
Structure of Inner Conductor |
7/0.75mm |
|
Material of Insulation |
Solid PE |
|
Diameter of Insulation |
7.24mm |
|
Material of Braiding(Double Shielding) |
SC(Silver Copper) |
|
Structure of Braiding(Double Shielding) |
128+144*0.15mm |
|
Material of Jacket |
PVC |
|
Diameter of Jacket |
11.80mm |
|
Working temp |
-40℃/80℃ |
|
Impedance |
50Ω±2 |
|
Voltage |
4000V |
|
Weight |
160KG/KM |
Applications
RG10 /U coaxial cable is used for direct burial, data transmission, broadcast, telecom, transmitter video signals, instrumentation and control. It also fits high-frequency and high-voltage signal lines. 50Ω impedance helps match video and transmitter equipment.
