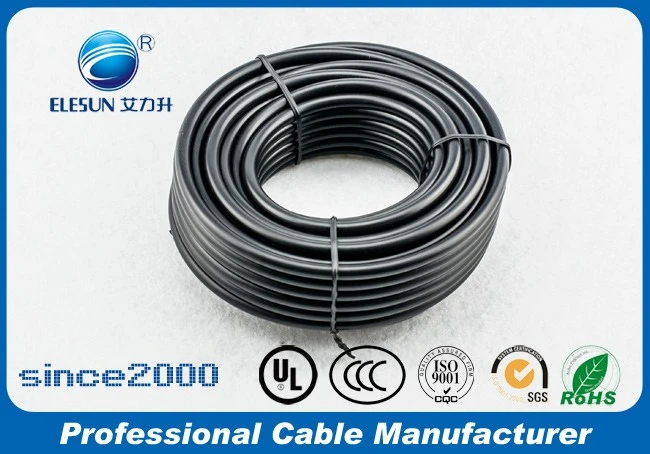

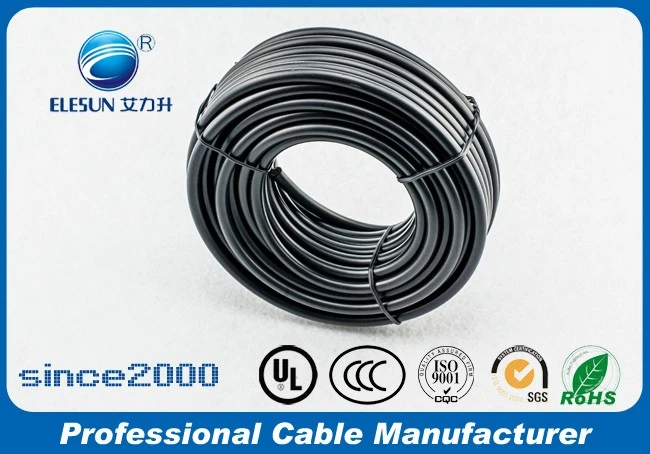

RG214/U Coaxial Cable For High-Frequency Signal Transmission

Jiangsu Elesun Cable Co., Ltd. is one of the leading manufacturers and suppliers of rg214/u coaxial cable for high-frequency signal transmission in China, also supports customized service. Should the bulk rg214/u coaxial cable for high-frequency signal transmission made in China caters to your requirement, welcome to get the datasheet from our factory.

Standard Mil-c-17

Conductor: Silver Copper

Insulation Material: Solid PE

1^st Shielding: Silver Copper Braiding

2^nd Shielding: Silver Copper Braiding

Outer jacket: PVC

Color: Black

Impedance: 50Ω±2

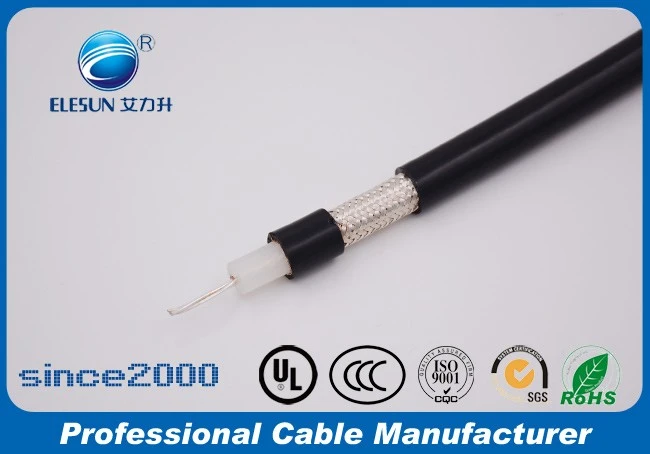

RG214/U features a classic dual-shielding structure but utilizes a larger wire gauge; the conductor employs a multi-strand design, offering superior flexibility compared to solid-conductor cables of the same size:
Inner Conductor: 7-strand silver-plated copper; strand diameter 0.75 mm; total diameter approx. 2.25 mm.
Dielectric: Solid polyethylene (PE); diameter approx. 7.28 mm.
Inner Shield: First layer of silver-plated copper braid; coverage typically ~90.7%; outer diameter approx. 8 mm.
Outer Shield: Second layer of silver-plated copper braid; coverage typically ~93.9%; outer diameter approx. 8.7 mm.
Outer Jacket: Typically black PVC (some military-grade versions use non-contaminating PVC/NCV); outer diameter approx. 10.8 mm.

RG-214/U coax cable is often used in computer, radio frequency, data transmission, broadcast, and telecommunications applications. RG214 cable is easily matched to transmitter antennas and may also be used in a variety of instrumentation and control applications.

The RG214 cable is a favored type of coaxial cable used for high-frequency signal transmissions. It is constructed with a stranded, silver-plated inner conductor, polyethylene dielectric, double silver-plated copper shielding out of the conductors and a PVC jacket. At a high voltage rating of up to 5,000 volts, the RG214 coaxial cable is very common in projects that demand elevated voltage requirements.
