Jiangsu Elesun Cable Co., Ltd. is one of the leading manufacturers and suppliers of rg223 /u coaxial cable in China, also supports customized service. Should the bulk rg223 /u coaxial cable made in China caters to your requirement, welcome to get the datasheet from our factory.
Jiangsu Elesun Cable Co., Ltd. is a leading Chinese manufacturer and supplier of high-quality 50-ohm RG223/U RF coaxial cables, offering customization services.
Products Description
Standard Mil-c-17
Conductor:Silver Copper
Insulation Material: Solid PE
Shielding:Double Silver Copper braiding
Jacket:PVC
Color: Black
Impedance:50Ω±2
Structural Composition

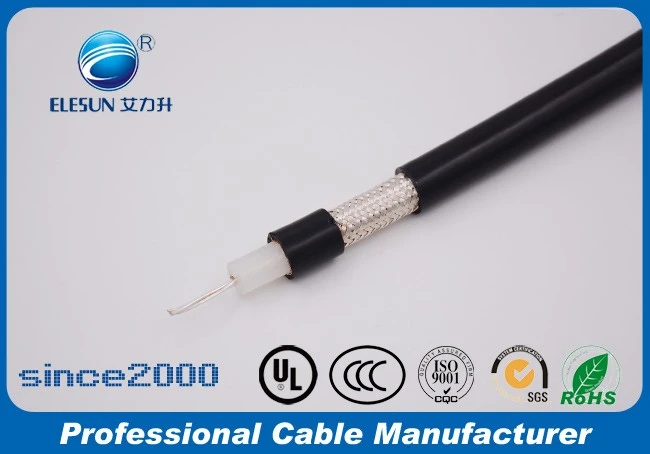

RG223/U features a classic "inner conductor – insulation – double shielding – outer jacket" structure:
Inner conductor: 0.9 mm solid silver-plated copper wire.
Insulation: Solid polyethylene (PE), with an outer diameter of approximately 2.95 mm.
Inner shield: First layer of silver-plated copper braid; coverage typically ranges from 93% to 98%.
Outer shield: Second layer of silver-plated copper braid; coverage typically ranges from 88% to 97%.
Outer jacket: Typically black PVC; Low Smoke Halogen-Free (LSHF) versions are available for some models.
Typical Application
CATV-community antenna television,
CCTV-closed-circuit television
DBS-direct broadcasting satellite
LAN/WAN or GPS applications which require low signal loss and high shielding performance.
RG223 cable is rated for direct burial applications.
Best Feature
The RG223 coaxial cable is a favored type of coaxial cable used for high-frequency signal transmissions. RG223 is constructed with a stranded silver copper conductor, PE insulation, double silver copper braid shielding and PVC jacket.
|
RG223/U coaxial cable specifications |
|
|
Material of Inner Conductor |
SC(Silver Copper) |
|
Structure of Inner Conductor |
1/0.90mm |
|
Material of Insulation |
Solid PE |
|
Diameter of Insulation |
2.95mm |
|
Material of Braiding(Double Shielding) |
SC(Silver Copper) |
|
Structure of Braiding(Double Shielding) |
112+128 *0.12mm |
|
Material of Jacket |
PVC |
|
Diameter of Jacket |
5.30mm |
|
Working temp |
-40℃/90℃ |
|
Impedance |
50Ω±2 |
|
Voltage |
1900V |
|
Weight |
55KG/KM |
As a leading Chinese manufacturer and supplier, we also offer customization services. If you are interested in bulk orders of our high-quality 50-ohm RG223/U RF coaxial cables made in China, please contact us to request product specifications.
