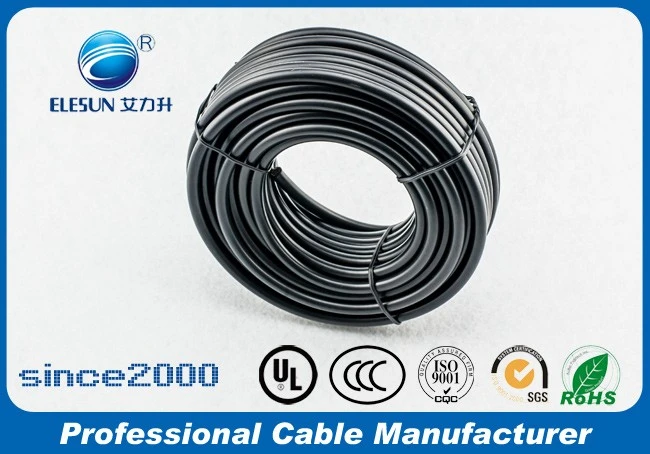

Jiangsu Elesun Cable Co., Ltd. is one of the leading manufacturers and suppliers of rg 213 coax cable in China, also supports customized service. Should the bulk rg 213 coax cable made in China caters to your requirement, welcome to get the datasheet from our factory.
Detailed Description
Inner Conductor: CU
Dielectric: Foam/Solid PE
Shield: Bonded, Non-bonded, Single, Double
Braid wire material: CU, AL-Mg, TC
Braid wire diameter: 0.12mm, 0.15mm, 0.16mm
Braid net: 96, 128 and more
Braid coverage: 80%, 90% and more
Jacket: PE/PVC
Jacket degree: 70,75
Products Description
|

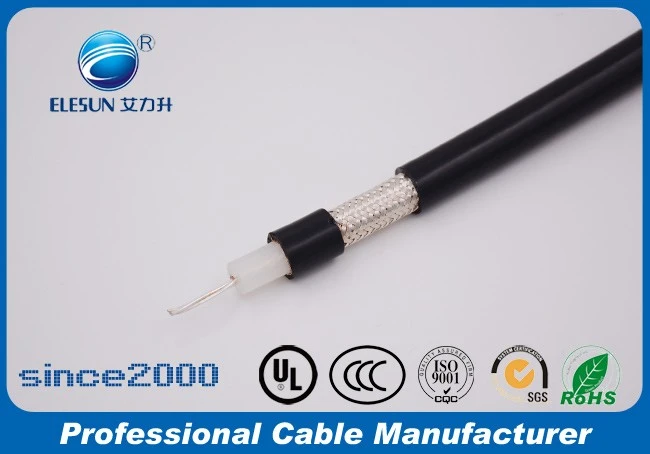

ConstructionConductor |
Material |
Bare Copper |
|
Nom. Dia. |
14AWG(7*0.75mm) |
|
|
Dielectric |
Material |
Foam PE |
|
Nom. Dia. |
7.24± 0.02mm |
|
|
Shield |
Material |
Al foil+ TC braiding* |
|
Coverage |
95% |
|
|
Jacket |
Material |
PVC/PE |
|
Nom. Dia. |
10.30± 0.10mm |
|
|
Nom. Thick |
0.86mm |
Electrical Specifications
|
Characteristic Impedance(Ohm) |
75 |
|
Nominal Velocity of Propagation (%) |
85 |
|
Nominal Capacitance(pF/m) |
50 |
|
Sparker Test(VAC) |
4000 |
|
SRL(dB, min) |
20 |
Application
The RG 213 coax cable is a low-loss coated cable that is noncontaminating. Coax Cables transmit radio signals, video signals, measurement signals and data signals and are often used in home entertainment systems. The RG 213 is generally considered the superior coax cable because it is low-loss and consists of seven braided strands of bare copper.
CATV-community antenna television.
CCTV-closed-circuit television.
DBS-direct broadcasting satellite.
Packing
Packing Lengths: 100/roll, 200 m/roll, 300m/roll. 305m/roll
Inner Packing: Wooden reel, plastic reel, and paper reel
Outer Packing: Carton box, pull out box, pallet available
Other packing available according to clients' request
