Jiangsu Elesun Cable Co., Ltd. is one of the leading manufacturers and suppliers of rg174 /u coaxial cable in China, also supports customized service. Should the bulk rg174 /u coaxial cable made in China caters to your requirement, welcome to get the datasheet from our factory.
Product Description

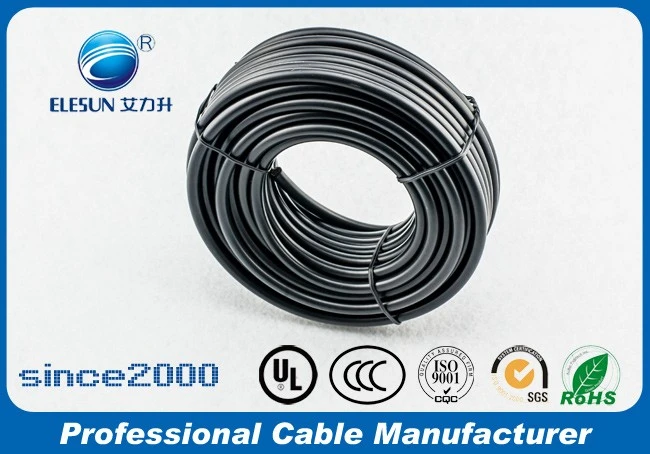

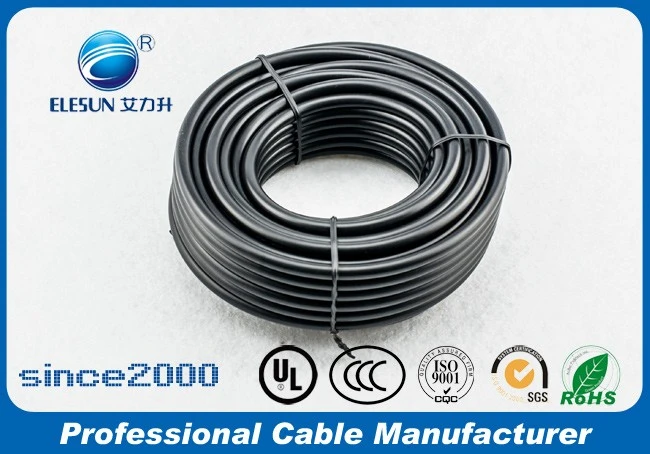

We are Jiangsu Elesun Cable Co., Ltd. We make and sell coaxial cables, connectors, cable assemblies, connecting wires, and electrical wires. RG174 /U coaxial cable is one of our miniature 50-ohm coaxial cables. It is built to MIL-C-17. It is equivalent to SYV-50-2. Black PVC jacket. Small diameter. Super flexible. For tight spaces.
Working Principle
RG174 /U coaxial cable carries RF and data signals at 50 ohms. The inner conductor carries the signal. The outer conductor returns current. The outer conductor also shields. The field stays inside the solid PE dielectric. This cuts radiation and interference. Good for short runs.
Construction

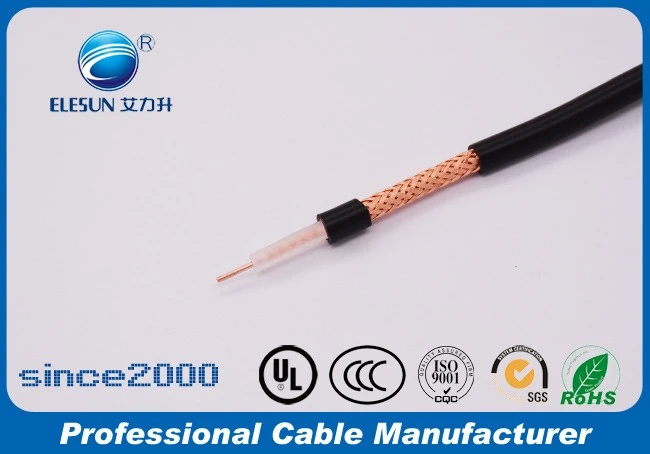

RG174 /U coaxial cable uses a coaxial multi-layer design. Inner conductor: Cu, CCS, or TC. Inner structure: 7/0.16 mm. Insulation: solid PE, 1.52 mm diameter. Shield: bare copper or tinned copper braid, 80*0.10 mm. Jacket: PVC, black, 2.8 mm diameter. Layers fit tightly.
Technical Parameters
RG174 /U coaxial cable key data: MIL-C-17. Equivalent to SYV-50-2. Impedance 50Ω±2. Voltage 1500V. Working temp -40°C to +80°C. Weight 15KG/KM. Insulation diameter 1.52 mm. Jacket diameter 2.8 mm. Inner conductor 7/0.16 mm. Shield 80*0.10 mm. Jacket PVC black.
Applications
RG174 /U coaxial cable is used for data signal transmission. Common in LAN/WAN. Used for GPS pigtail antenna. Also for car antenna. Good for short RF jumpers. Good for internal links in tight spaces. We can supply connectors and cable assemblies.
Closing
RG174 /U coaxial cable can be made to your material and process needs. Contact Jiangsu Elesun Cable Co., Ltd. for samples, datasheets, or quotes.
