Product Description
Our factory produces coaxial cables, connectors, cable assemblies, connecting lines and wires. LMR500 Flexible low loss coaxial cable is a flexible 50Ω low-loss coaxial cable, equivalent to 8D-FB foam PE cable. It is often used for jumper assemblies in wireless systems, with N, SMA and other connector options.
Working Principle
LMR500 Flexible low loss coaxial cable carries RF signal through the inner conductor, while Foam PE insulation lowers dielectric loss. Aluminum tape and tinned copper braiding provide shielding, and the jacket protects the cable. The 50Ω impedance helps keep stable performance from 0 to 2500MHz.
Product Structure

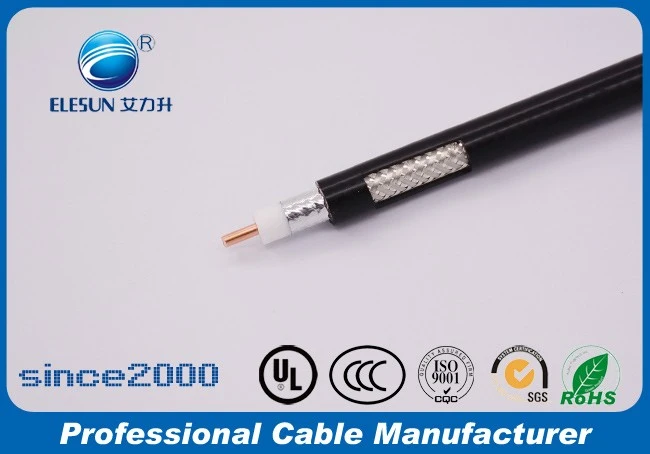

LMR500 Flexible low loss coaxial cable: inner conductor CCA/BC, 1/3.61mm; insulation FPE, 9.4mm; 1st shield aluminum tape; 2nd shield tinned copper braid; jacket PVC, PE, LSZH, FRPE or FRPVC, 12.7mm; color black or white.
Technical Data
Key data of LMR500 Flexible low loss coaxial cable:
|
LMR500 low loss coaxial cable specifications |
|
|
Material of Inner Conductor |
BC (Bare Copper) |
|
Structure of Inner Conductor |
1/3.61mm |
|
Material of Insulation |
FPE(Foam PE) |
|
Diameter of Insulation |
9.40mm |
|
1st Shielding |
Aluminum Tape |
|
Material of Braiding(2nd Shielding) |
TC (Tinned Copper), |
|
Structure of Braiding(2nd Shielding) |
144*0.18mm |
|
Material of Jacket |
PE, LSZH,FR-LSZH |
|
Diameter of Jacket |
12.6mm |
|
Working temp |
-40℃/80℃ |
|
Impedance |
50Ω±2 |
|
Voltage |
3000V |
|
SWR(0-2500MHz) |
≤1.2 |
|
Min.Bending Radius |
31.8mm |
Applications
LMR500 Flexible low loss coaxial cable is used for wireless communication jumper assemblies, base station and antenna feeders, indoor/outdoor RF links. It can replace 8D-FB foam PE coaxial cable in flexible low-loss runs, and can be made into N to SMA assemblies.
