Jiangsu Elesun Cable Co., Ltd. is one of the leading manufacturers and suppliers of lmr400 flexible low loss coaxial cable in China, also supports customized service. Should the bulk lmr400 flexible low loss coaxial cable made in China caters to your requirement, welcome to get the datasheet from our factory.
Products Description

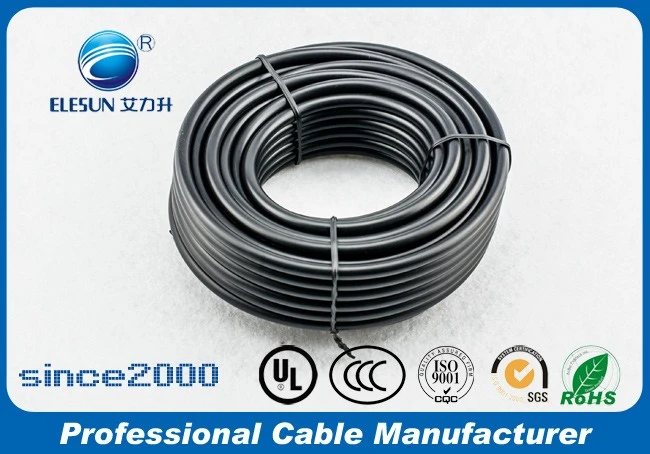

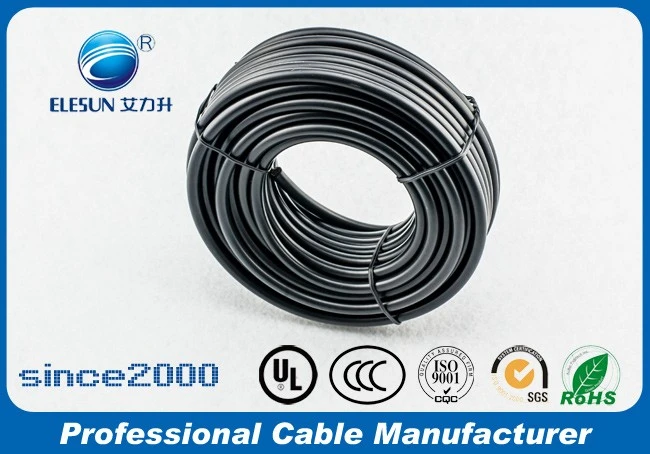

Jiangsu Elesun Cable Co., Ltd. makes coaxial cables, connectors, cable assemblies, connecting lines and wires. LMR400 Flexible low loss coaxial cable is a flexible 50Ω low-loss coaxial cable for jumpers, feeders and test links. It is smaller than LSR600, so it fits tighter routing. N, SMA and other connector assemblies are available.
Signal Path
LMR400 Flexible low loss coaxial cable sends RF through the inner conductor. Foam PE separates the conductors and lowers dielectric loss. Aluminum tape plus tinned copper braid shields the signal, and the jacket protects against moisture and wear. This keeps stable impedance and low SWR from 0 to 2500MHz.
Cross-Section
LMR400 Flexible low loss coaxial cable is built as: CCA/BC inner conductor, FPE insulation, aluminum tape first shield, tinned copper braid second shield, and PVC/PE/LSZH/FRPE/FRPVC jacket. Color is black or white. For LMR400, inner conductor, insulation, jacket diameter and braid structure follow the datasheet.
Best Feature
LMR 400 cable features a flexible outer conductor, allowing the tightest bend radius of any cable of similar size and performance.
Low Loss: Lowest loss of any flexible cable; comparable loss to semi-rigid cables
AL/PET Tape (Aluminum Mylar Tape) is used for cable shielding as a shielding insulator when assembling electronic components. AL/PET Tapes provide more protection by increasing the metallic coverage without adding increased thickness to the diameter of the cable. It comes in 3 different colors: Dark Blue, Light Blue, and Silver
Please contact us for LMR400 cable assembly with N connector to SMA connector
Technical Specifications
|
LMR400 low loss coaxial cable specifications |
|
|
Material of Inner Conductor |
BC (Bare Copper) |
|
Structure of Inner Conductor |
1/2.74mm |
|
Material of Insulation |
FPE(Foam PE) |
|
Diameter of Insulation |
7.24mm |
|
1st Shielding |
Aluminum Tape |
|
Material of Braiding(2nd Shielding) |
TC (Tinned Copper) |
|
Structure of Braiding(2nd Shielding) |
144*0.15mm |
|
Material of Jacket |
PE, PVC, LSZH,FR-PVC,FR-LSZH |
|
Diameter of Jacket |
10.29mm |
|
Working temp |
-40℃/80℃ |
|
Impedance |
50Ω±2 |
|
Voltage |
2500V |
|
SWR(0-2500MHz) |
≤1.2 |
|
Min.Bending Radius |
51.5mm |
Typical Application
LMR400 is the same specification as LSR400, generally designed for jumper assemblies in wireless communications systems
LMR400 can replace for RG8 air-dielectric type cable.
LMR400 has PE jacket, PVC jacket, LSZH jacket Flame-retardant LSZH jacket, Flame-retardant PVC jacket for different environment
