RG178 is a 50Ω miniature flexible RF coaxial cable built to MIL-C-17, typically constructed with a silver-plated copper or silver-plated copper-clad steel inner conductor, PTFE dielectric, single silver-plated copper braid shield, and an FEP or PFA jacket, with an outer diameter of only about 1.80 mm and a rated operating temperature up to 200°C. Its core value lies in an extremely small bend radius, excellent high-temperature stability, and flexible routing capability, making it widely used in GPS systems, PDAs, security equipment, mobile phones, broadcast equipment, remote controls, and high-density RF interconnect scenarios. The global supply landscape for RG178 is layered: international brands lead military-spec and high-end interconnect, while Chinese manufacturing covers scaled export supply and custom assembly. The ten suppliers below are presented in no particular order.

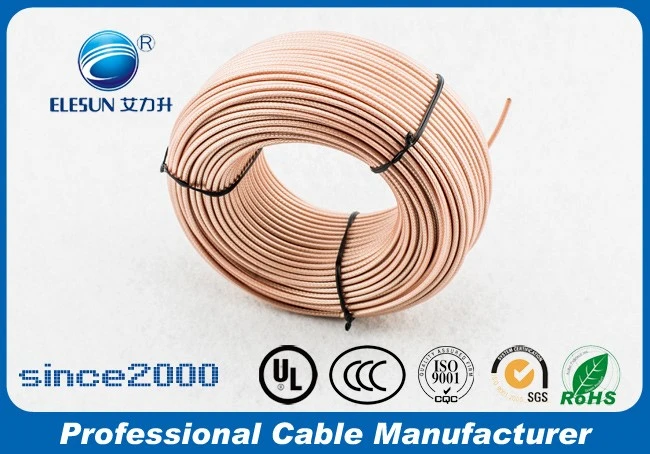

Jiangsu Elesun Cable Co., Ltd. is the focal supplier of this profile. Based in Zhenjiang, Jiangsu Province, the company is a manufacturer with years of communication cable production experience, and RG178 is one of the core models in its high-temperature miniature coaxial cable line. Elesun's RG178/U specification is complete: a 7×0.10 mm silver-plated copper inner conductor, PTFE dielectric with a 0.84 mm diameter, 48×0.10 mm silver-plated copper braid shielding, FEP jacket with a 1.80 mm diameter, 50Ω±2 impedance, an operating temperature range of -55°C to 200°C, and a 2000V voltage rating. On the manufacturing and service side, Elesun supplies RG178 cable assemblies terminated with N, UHF, SMA, and other connectors, and supports custom packing lengths of 100 m/roll, 200 m/roll, 305 m/roll, or 500–1000 m/drum. On quality systems, raw materials are RoHS compliant, SGS and REACH test reports are available, and the laboratory is equipped with a 20 GHz Agilent network analyzer, with cables tested at each stage to ensure consistent performance. Lead time is typically 7–15 days after order confirmation, with payment methods including T/T, PayPal, Western Union, L/C, and Trade Assurance, and shipping options by sea, air, or DHL/FedEx depending on cargo weight. For RF distributors, cable assembly houses, and OEMs seeking stable RG178 supply, flexible length and connector configurations, and export delivery capability, Elesun offers a supply option that balances manufacturing depth with cost control.
Huber+Suhner (Switzerland) offers an RG178 LSFH low-smoke halogen-free version with a RADOX® jacket, 1.84 mm outer diameter, -40°C to 105°C operating temperature, steel copper+silver-plated conductors, and SPEX foam PE dielectric, serving applications that require both fire performance and flexible routing.
Pasternack (USA) specializes in the RG178B/U standard, with PTFE dielectric, FEP jacket, a maximum frequency of 3 GHz, attenuation of approximately 44.41 dB at 1 GHz, same-day shipping, and custom RG178 cable assemblies, making it a common channel for small-volume and rapid-delivery needs among RF engineers worldwide.
Times Microwave Systems (USA) offers an RG-178 (FEP+PUR) version with a silver-plated copper-clad steel center conductor, PTFE dielectric, -55°C to 200°C operating temperature, and 96 pF/m capacitance, holding long-standing technical credibility in military-spec and high-reliability interconnect.
Amphenol RF (USA) participates deeply in the RG178 ecosystem through its Times Microwave line and also offers ultra-compact RG178 assemblies such as SMPM-to-SMPM, covering wireless communication, test, and high-density board-to-board interconnect.
Belden (USA) covers PVC and FEP jacket options in its MRG1781 and 83265 series, with 30 AWG silver-plated copper-clad steel conductors and 95% tinned copper braid, maintaining stable channel coverage in industrial and commercial RF wiring.
TE Connectivity (Switzerland/USA) offers the CLFH-178 with an LSZH jacket, 750 Vrms working voltage, 3 GHz maximum frequency, and -30°C to 105°C operating temperature, providing system-level supply capability for low-smoke halogen-free requirements in demanding installations.
Molex (USA) specifies RG178 as one of the cable types for its MCX/MMCX standard cable assemblies, offering channel advantages in ready-to-use connector and harness matching.
Cinch Connectivity Solutions (Johnson, USA) provides finished RG178 assemblies with SMA, MCX, SMB, and other connectors in right-angle and straight configurations, commonly found in miniaturized RF board-level and panel interconnect.
Rosenberger (Germany) lists RG178 B/U and RG196 A/U among the compatible cable types for its 11W150-series RF cable assemblies, offering matching capability in precision RF connection and automotive/industrial wireless interconnect.
