Basic Info
Model NO.: 3D-Fb Dual
Conductor Material: Tc Wire Braid/Al/TCCA
Type: Coaxial
Conductor Type: Solid
Certification: ISO, RoHS
Brand: Ottocable
Inner Conductor: 1.00CCS/Bc
First Shield: 3.10bonded Aluminum Foil
Jacket: 5.00PVC/PE/Lszh
Impedance: 50ohms
Trademark: OttoCable
Specification: CE, RoHS
HS Code: 8544200000
Application: Local Communication Cable, Coaxial Cable, RF Cable
Cover Material: PVC/PE/Lszh
Material Shape: Round Wire
Wire Core Material: Bare Copper/CCS
Model: 3D-Fb Dual
Insulation: 3.00foam PE
Second Shield: 3.60tc Wire Braid/Al/TCCA
Jacket Color: as Per Request
Origin of Place: Jiangsu , China
Transport Package: as Per Request
Product Description
3D-FB
3D-FB
3D-BC-AL
3D-CCS-TCCA
3D-CCS-AL
3D-FB ASSEMBLIES
OVERVIEW FEATURES DATESHEET ASSEMEBLIES/APPLICATION MORE IDEAS
Overview
This is a JIS foam coaxial cable with solid inner conductor. It has a good attenuation and shielding effectiveness.As a substitute for RG58 coaxial cable,it has been widely applied to radio transmission,base radio antenna station and other communication systems.
Features
· 50 Ohm data signal transmission;
· The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
· Excellent performance in high frequency,VSWR stability;
· Customized cable color , winding and connector, meet your different requirements;
· RoHS compliant;
Assemblies & Application
These 50 Ohm 3D-FB coaxial cables can be fixed kinds of connectors,such as SMA,N,BNC,TNC connectors.As a substitute for RG58 coaxial cable, these versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.
More Ideas
1) If require conventional construction and materials, please click 3D-FB;
2) If require lightweight and weldable shield,please click 3D-CCS-TCCA;
3) If require lightweight and lower price,please click 3D-BC-AL or 3D-CCS-AL;
4) If require high tensile strength,please click 3D-CCS-AL;
5) For more 3D-FB assemblies,please click 3D ASSEMBLIES;
6) Any other requirements or queries, please click CONTACT US.
3D-FB
3D-BC-AL
3D-CCS-TCCA
3D-CCS-AL
3D-FB ASSEMBLIES
OVERVIEW FEATURES DATESHEET ASSEMEBLIES/APPLICATION MORE IDEAS
Overview
This is a JIS foam coaxial cable with solid inner conductor. It has a good attenuation and shielding effectiveness.As a substitute for RG58 coaxial cable,it has been widely applied to radio transmission,base radio antenna station and other communication systems.
Features
· 50 Ohm data signal transmission;
· The shielding layer composed of aluminum foil and braiding has a good shielding effectiveness;
· Excellent performance in high frequency,VSWR stability;
· Customized cable color , winding and connector, meet your different requirements;
· RoHS compliant;
Assemblies & Application
These 50 Ohm 3D-FB coaxial cables can be fixed kinds of connectors,such as SMA,N,BNC,TNC connectors.As a substitute for RG58 coaxial cable, these versatile cable assemblies with various lengths have been widely applied to CDMA,GSM radio transmission,base radio antenna station and other communication systems.

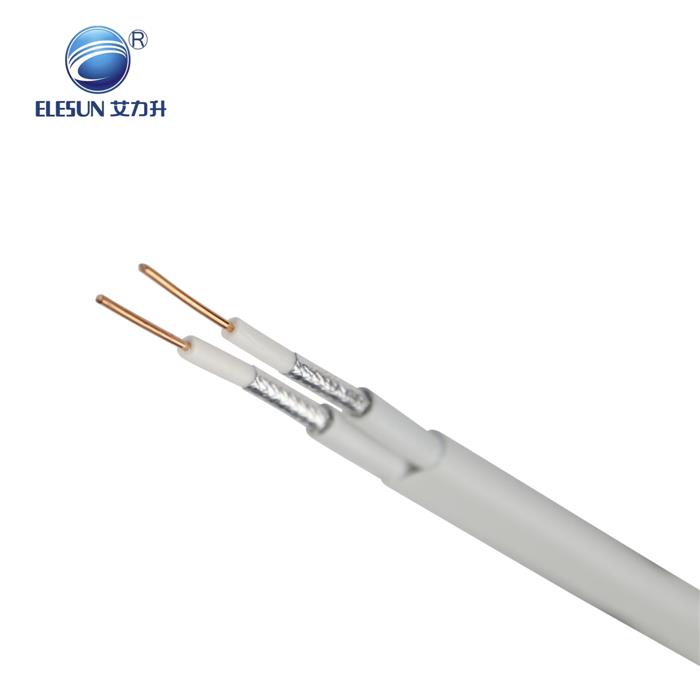

| Coaxial Cable 3D-FB Dual (Combined with 2 pcs 3D-FB) | |||
| Construction | |||
| Item | Material | Diameter(mm) | |
| Inner Conductor | Bare Copper or Copper Clad Steel | 1.00 | |
| Dielectric | Foam PE | 3.00 | |
| First Shield | Boned Aluminum Foil | 3.20 | |
| Second Shield | Tinned Copper Braid | --- | |
| Jacket | PVC/PE/LSZH | 5.40 | |
| Electrical Characteristics | Attenuation @20oC (dB/100M) | ||
| Impedance(Ω) | 50 | @100MHz | 10.4 |
| Velocity of Propagation(%) | 81.0 | @350MHz | 19.5 |
| Return Loss(dB) | ≥20 | @900MHz | 31.8 |
| VSWR(dB) | ≤1.3 | @1200MHz | 37.2 |
| Shielding Effectiveness(dB) | ≥85 | @1500MHz | 41.5 |
| Operating Temperature(oC) | -25 to +70 | @1800MHz | 45.6 |
| @2500MHz | 54.0 | ||
More Ideas
1) If require conventional construction and materials, please click 3D-FB;
2) If require lightweight and weldable shield,please click 3D-CCS-TCCA;
3) If require lightweight and lower price,please click 3D-BC-AL or 3D-CCS-AL;
4) If require high tensile strength,please click 3D-CCS-AL;
5) For more 3D-FB assemblies,please click 3D ASSEMBLIES;
6) Any other requirements or queries, please click CONTACT US.
