Basic Info
Model NO.: FR
Conductor Type: Solid or Stranded
Conductor Material: Copper
Insulation Material: PVC
Range of Application: Flame Retardant
Brand: ELESUN
Trademark: ELESUN
Specification: 1.0-2.5mm2
HS Code: 8544422900
Type: Insulated
Application: Overhead, Heating, Underground, Construction
Sheath Material: PVC
Material Shape: Round Wire
Certification: ISO9001, UL, CCC, RoHS
Product Name: Fire Ristant Cable
Transport Package: 100 M/Roll or Customized
Origin: China
Product Description

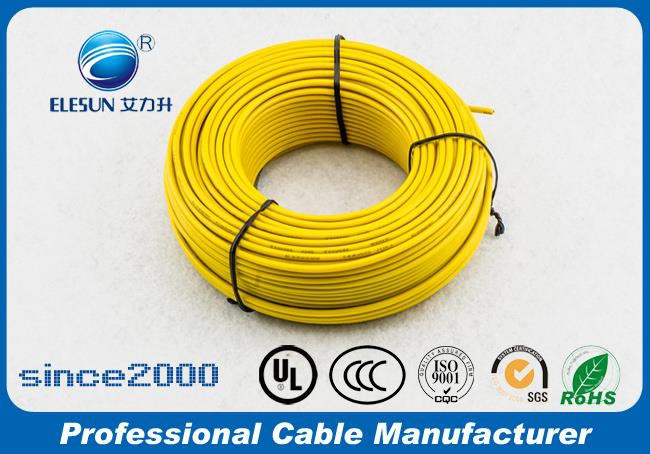

High Quality Copper Fire Resistant Cable
Suitable for rated voltage not more than 600V,rated temperature not more than 500 degree celsius
Nominal Voltage:600V
Nominal Temperature:200°c or 450°c
Conductor:Nickel Copper
Insulation:Mica tape with lapping
Jacket: Fiberglass
Use: For kinds of electric installation for metallurgy,hot work,Petroleum,chemical industry, natural gas,kerosene,etc. special environments
Property:Suitable for rated voltage not more than 600V,rated temperature not more than 500°c
Installation condition:Fixed
Fire performance:Not fuse below 800°c with 90 minites
Opposite temperature: 65% can use under bending and fire,no toxic and harmful gases
PVC insulated fire resistant cable can be made according to BS, VDE, ASTM, AS,CSA standards according to customer's request.
PVC insulated Fire resistant cables come in a variety of types and standards. All are comprehensively tested to British Standard to ensure they meet their design criteria.
The FP Cables range of fire resistant cables contains cables for most fire applications from a fire resistant alternative to standard cable for use in metal conduits and trunking, to more specialist cable for fire alarms, fire detection circuits and emergency lighting. A good example of this is FP200 Gold® - a hard skin cable, incorporating damage resistant Insudite insulated cores.
Much of the refinement work on these cables is not only to create further fire resistance but to improve handling and ease of installation. However, on large and complex building projects with demanding fire safety requirements an armour version fire resistant cable may be necessary - such as FP6
